R.F. CO-AXIAL CABLE



Parashield coaxial cable are widely used by telephone industry, all the major manufacturers of radio, television, radar, navigation aids, fire control, aircraft, shipbuilding, under water sound and many other types of transmitting equipment community T.V. and close circuit T.V. system.

Coaxial cable

An unbalanced communication cable with a central conductor surrounded by an insulator and a Braided wire for screening and Outer layer/Sheath for protection.

Range of co-axial cable
RG / UNumber Conductor
(m.m.)		 Dielectric Material Shield Sheath O.D Nominal Impedance (W) Capacitance PF/meter Remarks

8A
 7/0.72 ABC
 PE ABC PVC 10.30
 52
 97

11A 7/0.40 ATC PE ABC PVC 10.30
 75 67.25

12A 7/0.40 ATC PE ABC PVC 15.50
 75 67.25
 ARMOURED
17A 1/ 4.8 ABC PE ABC PVC 22.10
 50
 96.7

58C 19/0.18 ATC PE ATC PVC 4.95 50 93.5
59 1/0.58 CCS PE ABC PVC 6.15 75
 65.6

174 7/.16 ATC PE ATC PVC 2.54 50
 99.7

213
 7/.75 ABC PE ABC PVC 10.30 50
 96.8

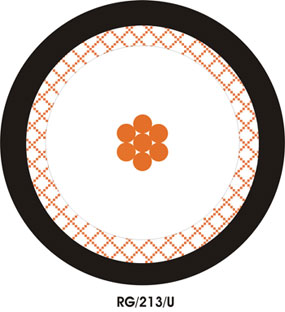

214
 7/.75 SCC PE 2XSCC PVC 10.80 50
 98.4

217
 1/ 2.69 ABC PE 2xABC PVC 13.84 50
 97

223 1/.89 SCC PE 2XSCC PVC 5.50 50 96.3

Applicable Standard : as per Jss/Gost
R. F. Co-Axial Cable contd...
