PARASHIELD
Shielded Cables are used in process Control application. Wide range
of Shielded Cables are designed for interconnection of Switcohing
system equipment,PlantAutomation, different sensitive equipments,
process control application
SHIELD: Means Protection.
In
cable industries we can use Term Shield as a protection of Signal
from electro Static Interface, humming. It all Depend on Braid angle,
Braid conductor, type of Braiding/Screening individual or collective,
or both, Braiding/Screening percentage, efficiency of Screening/Braiding.
Shielding
may be provided by Annealed Bare Copper, Annealed Tinned Copper
wire, Al-Alloy Silver Coated Copper Wire, Nickel SS Wire, G.I Wire
in the shape of Braiding Shielding also provided by Metallic Tape
(Alluminium /Copper ) with Drain Wire with Minimum 25% Overlapped..
for better performance of cable, Copper Braiding may be provided
over metalic tape.
"PARASHIELD” RANGE OF SHIELDED
CABLES.
Cross
Sectional Area
0.12
sq. mm to 2.5 sq. mm upto 100 core of tinned/un- Tinned Copper
Conductors. (Flexible)

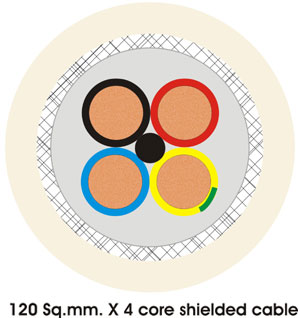

2.5 Sq. mm to 120 Sq. mm upto 4 core
Insulation
PVC/Polyethelene as per requirement
Identification
of Cores
Colour coded/Bio-colour/Numbered
Formation
Collectively laidup with suitable
filler
Screening/Shielding
Overall (collective
Shielded) (OAS), Individual Shielded (IS) or both IS and OAS
provided by Bare copper or annealed tinned copper as per the
requirement of customers.
Armouring
Unarmoured /Armoured with Galvanised
Steel Wire/ Strip
