Access Control Unscreened Cables

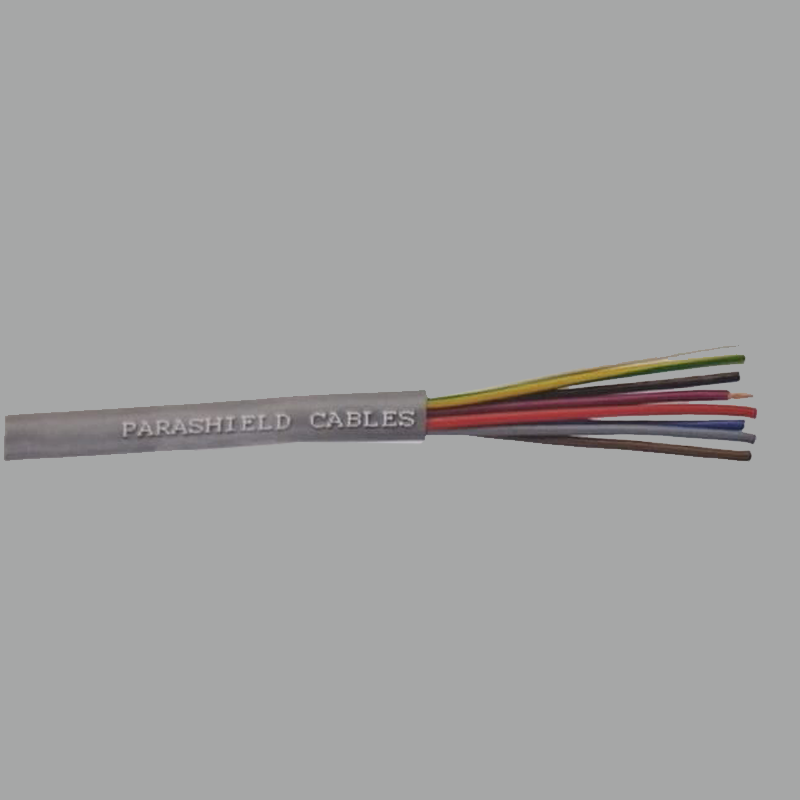

Parashield Access Control Unscreened cables Designed for inter-connecting sensors and control panels, alarm cables are widely used within the security industry.
Construction:
Conductor:
Annealed Tinned copper
Insulation:
PVC,
Color Code:
Colour coded/numbered cores
Stranding:
In layers with polyester tape
Jacket Material:
PVC.
Jacket Color:
Gray/Black/ White
Technical Data:
Voltage Rating– 0.6/1KV
Temperature Rating- -40°C to +90°C
Minimum Bending Radius- -40°C to +90°C
| Technical Data | Specification |
|---|---|
| Operating Voltage |
< 24 AWG = Max. 300 V ≥ 24 AWG = Max. 500 V |
| Testing Voltage |
< 24 AWG = 800 V ≥ 24 AWG = 1200 V |
| Minimum Bending Radius |
Fixed Installation: 5 × O.D. Free Movements: 10 × O.D. |
| Temperature Range |
Static: -20°C to +70°C Flexing: -5°C to +70°C |
| Part No. | No. of Core × sq.mm | Out. Dia. (Approx.) (mm) | Conductor Resistance (Ω/Km @ 20°C) |
|---|---|---|---|
| 0.14 sq.mm (AWG 26) | |||
| PSF 2014 | 2 × 0.14 | 3.5 | 125.70 |
| PSF 3014 | 3 × 0.14 | 3.6 | 125.70 |
| PSF 4014 | 4 × 0.14 | 3.9 | 125.70 |
| PSF 5014 | 5 × 0.14 | 4.2 | 125.70 |
| PSF 6014 | 6 × 0.14 | 4.5 | 125.70 |
| PSF 7014 | 7 × 0.14 | 4.5 | 125.70 |
| PSF 8014 | 8 × 0.14 | 4.8 | 125.70 |
| PSF 10014 | 10 × 0.14 | 5.5 | 125.70 |
| PSF 12014 | 12 × 0.14 | 5.7 | 125.70 |
| PSF 14014 | 14 × 0.14 | 6.0 | 125.70 |
| PSF 16014 | 16 × 0.14 | 6.2 | 125.70 |
| PSF 18014 | 18 × 0.14 | 6.7 | 125.70 |
| PSF 20014 | 20 × 0.14 | 7.0 | 125.70 |
| PSF 24014 | 24 × 0.14 | 7.7 | 125.70 |
| 0.35 sq.mm (AWG 22) | |||
| PSF 2035 | 2 × 0.35 | 4.5 | 49.5 |
| PSF 3035 | 3 × 0.35 | 4.8 | 49.5 |
| PSF 4035 | 4 × 0.35 | 5.2 | 49.5 |
| PSF 5035 | 5 × 0.35 | 5.6 | 49.5 |
| PSF 6035 | 6 × 0.35 | 6.0 | 49.5 |
| PSF 7035 | 7 × 0.35 | 6.0 | 49.5 |
| PSF 8035 | 8 × 0.35 | 6.5 | 49.5 |
| PSF 10035 | 10 × 0.35 | 7.7 | 49.5 |
| PSF 12035 | 12 × 0.35 | 8.0 | 49.5 |
| PSF 14035 | 14 × 0.35 | 8.4 | 49.5 |
| PSF 16035 | 16 × 0.35 | 8.8 | 49.5 |
| PSF 18035 | 18 × 0.35 | 9.4 | 49.5 |
| PSF 20035 | 20 × 0.35 | 9.9 | 49.5 |
| PSF 24035 | 24 × 0.35 | 10.9 | 49.5 |
| Part No. | No. of Core × sq.mm | Out. Dia. (Approx.) (mm) | Conductor Resistance (Ω/Km @ 20°C) |
|---|---|---|---|
| 0.22 sq.mm (AWG 24) | |||
| PSF 2022 | 2 × 0.22 | 4.1 | 78.30 |
| PSF 3022 | 3 × 0.22 | 4.3 | 78.30 |
| PSF 4022 | 4 × 0.22 | 4.7 | 78.30 |
| PSF 5022 | 5 × 0.22 | 5.0 | 78.30 |
| PSF 6022 | 6 × 0.22 | 5.4 | 78.30 |
| PSF 7022 | 7 × 0.22 | 5.4 | 78.30 |
| PSF 8022 | 8 × 0.22 | 5.8 | 78.30 |
| PSF 10022 | 10 × 0.22 | 6.9 | 78.30 |
| PSF 12022 | 12 × 0.22 | 7.1 | 78.30 |
| PSF 14022 | 14 × 0.22 | 7.5 | 78.30 |
| PSF 16022 | 16 × 0.22 | 7.8 | 78.30 |
| PSF 18022 | 18 × 0.22 | 8.4 | 78.30 |
| PSF 20022 | 20 × 0.22 | 8.8 | 78.30 |
| PSF 24022 | 24 × 0.22 | 9.7 | 78.30 |
| 0.50 sq.mm (AWG 20) | |||
| PSF 2050 | 2 × 0.50 | 5.1 | 40.2 |
| PSF 3050 | 3 × 0.50 | 5.4 | 40.2 |
| PSF 4050 | 4 × 0.50 | 5.9 | 40.2 |
| PSF 5050 | 5 × 0.50 | 6.4 | 40.2 |
| PSF 6050 | 6 × 0.50 | 7.1 | 40.2 |
| PSF 7050 | 7 × 0.50 | 7.1 | 40.2 |
| PSF 8050 | 8 × 0.50 | 7.6 | 40.2 |
| PSF 10050 | 10 × 0.50 | 9.1 | 40.2 |
| PSF 12050 | 12 × 0.50 | 9.4 | 40.2 |
| PSF 14050 | 14 × 0.50 | 9.9 | 40.2 |
| PSF 16050 | 16 × 0.50 | 10.4 | 40.2 |
| PSF 18050 | 18 × 0.50 | 11.1 | 40.2 |
| PSF 20050 | 20 × 0.50 | 11.6 | 40.2 |
| PSF 24050 | 24 × 0.50 | 13.1 | 40.2 |
