Speaker Cables
Parashield Speaker Cables Designed for installations in pubs, clubs, gyms and public buildings as well as high end domestic installations. The high number of strands and low resistance values enable the speaker to operate at optimum levels. Parashield speaker cables are made by electrolytic copper so it can be classed as OFC (Oxygen Free Copper).
Technical Information

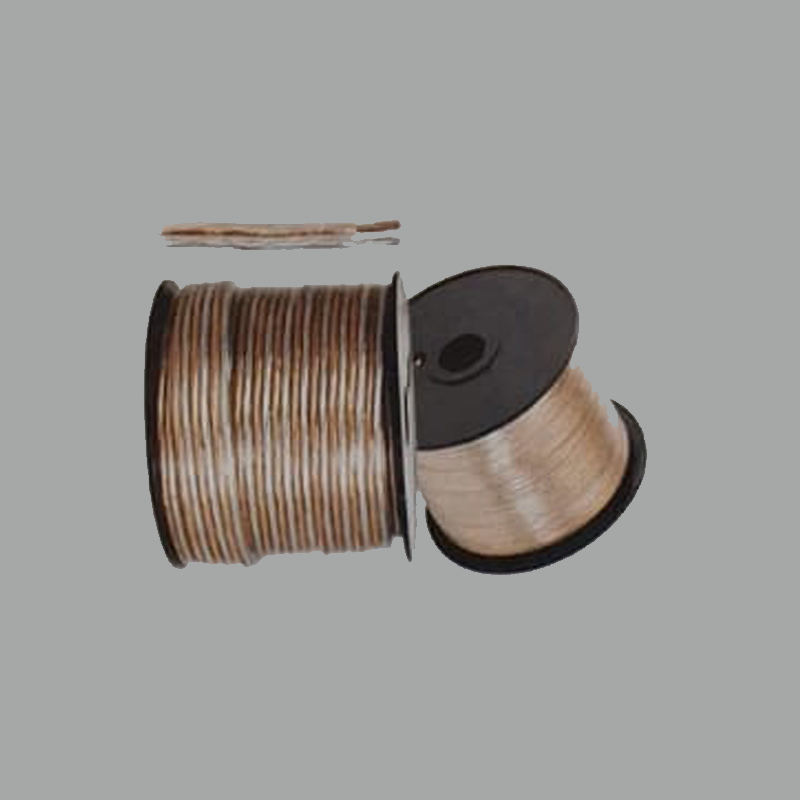

Twin Parallel shaped
This cable is easy to lay and hide. Cable Polarity is managed by using one Tinned and one Bare Copper Conductor. It can however be harder to pull because of flat shape. Application: These cables come handy for small distance speaker installation like – Car Audio System, Home Theater System, personal Stero and Audio System etc. Product Description, Electrolytic high Conductivity Bunched Copper Conductor, PVC Insulated, One Conductor Bare & One Conductor Tinned Copper. White or Clear as per customer requirements.
| Part No. | Size (mm²) | Dimensions (mm) | Conductor Resistance (Ω/km) | Voltage Test | Colour |
|---|---|---|---|---|---|
| PSSKP050 | 0.50 | 2.10 × 4.30 | 40.10 | 2 kV | Clear |
| PSSKP075 | 0.75 | 2.30 × 4.70 | 26.70 | 2 kV | Clear |
| PSSKP100 | 1.00 | 2.50 × 5.10 | 20.00 | 2 kV | Clear |
| PSSKP150 | 1.50 | 2.80 × 5.70 | 13.70 | 2 kV | Clear |
| PSSKP250 | 2.50 | 3.50 × 7.10 | 8.21 | 2 kV | Clear |
| PSSKP400 | 4.00 | 4.20 × 8.50 | 5.09 | 2 kV | Clear |

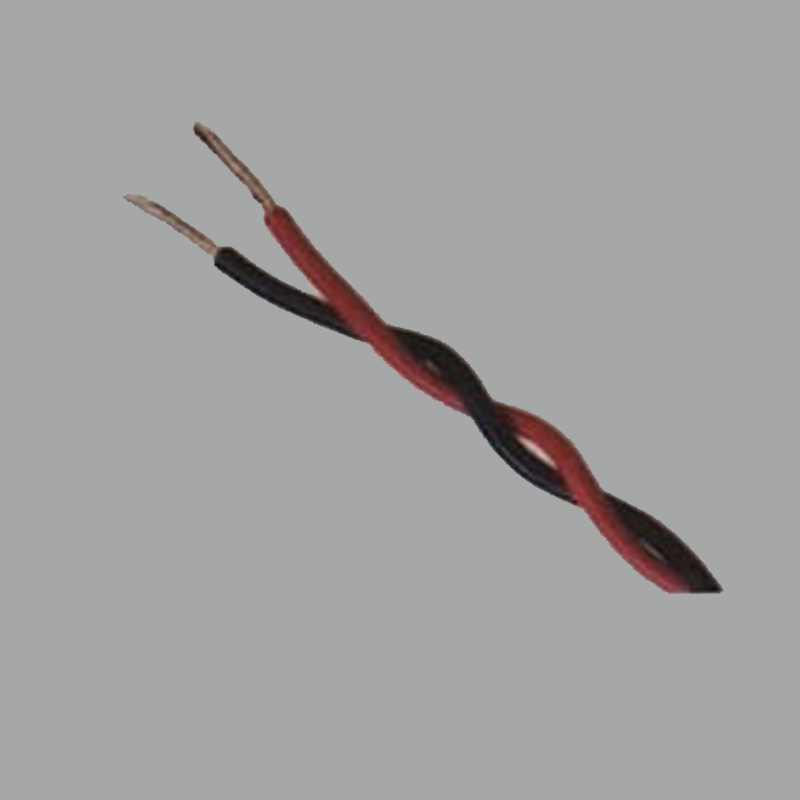

Open twin twisted pair
The Twisted cable is more flexible and easier to install. Because of the twisted technology, it provieds greater immunity from external electrical interferance and leakage both from and into other cables, Application; These cables are used to connect speakers in auditoriums, Cinema halls, Hotels, Restaurant, Post Production Houses, Recording and Sound Studios, Radio Station and T.V. Station Product Description: Electrolytic high Conductivity Bunched Copper Conductor, PVC Insulated One Conductor Tinned and One Conductor Bare colour. Red & Black.
| Part No. | Size (mm²) | Overall Dia. (mm) | Conductor Resistance (Ω/km) | Test Voltage | Colour |
|---|---|---|---|---|---|
| PSSKT050 | 0.50 | 4.30 | 40.10 | 2 kV | R/BK |
| PSSKT075 | 0.75 | 4.70 | 26.70 | 2 kV | R/BK |
| PSSKT100 | 1.00 | 5.10 | 20.00 | 2 kV | R/BK |
| PSSKT150 | 1.50 | 5.70 | 13.70 | 2 kV | R/BK |
| PSSKT250 | 2.50 | 7.10 | 8.21 | 2 kV | R/BK |
| PSSKT400 | 4.00 | 8.50 | 5.09 | 2 kV | R/BK |

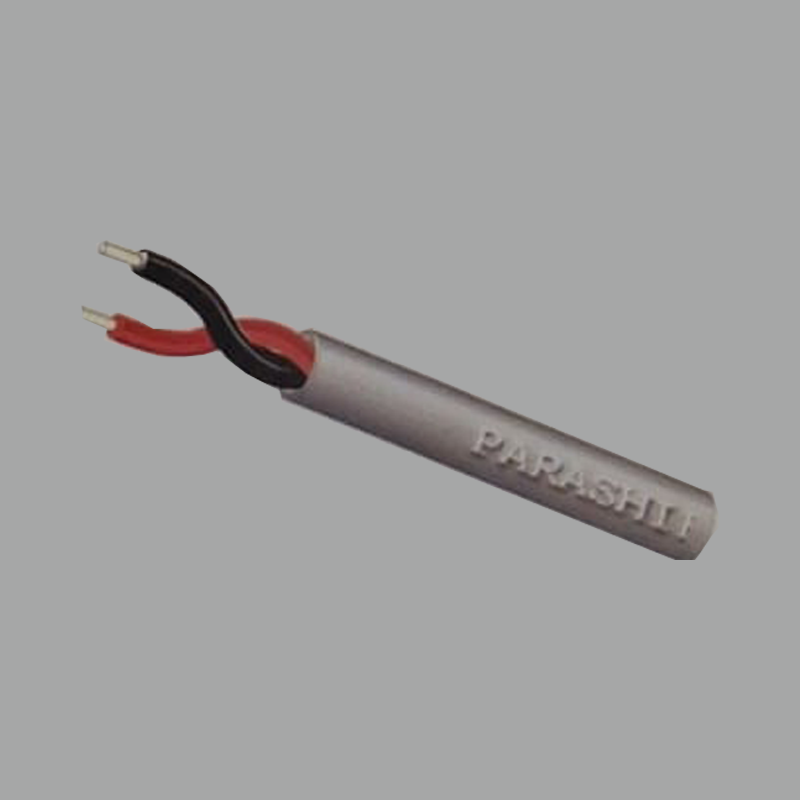

Twisted pair Jacketed
The jacketed constructions is little less in flexibility of the three designs. The outer Jackets however makes these cables more robust and suitable for pulling. It can also be used without conduit.
Applications: These cables are used in same applications as open twisted pair, but because of its jackets the cables get more strength and longer life.
Product Descriptions: High conductivity tinned copper conductor, PVC insulated, laid up with Mallinex Tape and PVC over all sheathed
| Part No. | Size (mm²) | Outer Dia. (mm) | Conductor Resistance (Ω/km) | Voltage Test | Colour |
|---|---|---|---|---|---|
| PSSKJ050 | 0.50 | 6.10 | 40.10 | 2 kV | GY/BK |
| PSSKJ075 | 0.75 | 6.50 | 26.70 | 2 kV | GY/BK |
| PSSKJ100 | 1.00 | 6.90 | 20.00 | 2 kV | GY/BK |
| PSSKJ150 | 1.50 | 7.50 | 13.70 | 2 kV | GY/BK |
| PSSKJ250 | 2.50 | 9.10 | 8.21 | 2 kV | GY/BK |
| PSSKJ400 | 4.00 | 10.50 | 5.09 | 2 kV | GY/BK |
